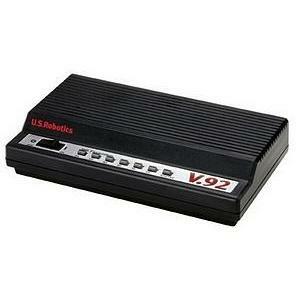

USR5686E
by 3com
- Unspsc:
- 43222628
- Nsn:
- 5895015204835
- Description:
- U.S. Robotics has been building the world's best modems for over 25 years, and now we're bringing you the latest in modem technology. V.92 lets you send e-mail and attachments faster, get online quicker,and even take incoming phone calls without losing your Internet connection. Getting a better connection is as easy as the three- step installation procedure. The U.S. Robotics 56K* Faxmodem combines the superior performance and reliability of a controller-based modem with the convenience of V.92 technology. *Capable of receiving at up to 56 Kbps and sending at up to 48 Kbps (or 31.2 Kbps with V.90 server). Due to FCC regulations, receiving speeds are limited to 53 Kbps. Actual speeds may vary. V.92 and V.90 features require compatible phone line and support from your Internet Service Provider (ISP). U.S. Robotics modems featuring V.92 enhancements are backward compatible and will negotiate the highest possible speed when connecting to an ISP.
Interfaces/Ports
- Host Interface
- Serial
- Number of Modem (RJ-11) Ports
- 1
General Information
- Product Type
- Data/Fax Modem
- Manufacturer Part Number
- USR5686E
- Manufacturer Website Address
- http://www.usr.com
- Packaged Quantity
- 1
- Manufacturer
- U.S. Robotics
- Product Model
- 5686E
- Product Name
- 5686E 56K Faxmodem
- Brand Name
- U.S. Robotics
Media & Performance
- Fax Transmission Data Rate
- 14.4 kbit/s
- Modem Transmission Data Rate
- 56 kbit/s
Miscellaneous
- Package Contents
- U.S. Robotics 56K FaxmodemAC Power AdapterRJ-11 phone cord (7 ft)Quick Installation GuideInstallation CD-ROM
- Compatibility
- IBM compatible PC56K compatible local analog phone lineModem is compatible with Windows XP, Windows NT 4.0, Windows 2000, Windows ME, Windows 98, Windows 95, Windows 3.1, Linux and DOS
- Certifications & Standards
- FCC approved (Part 15 Class B/Part 68)IC approvedUL listedCUL listed
- System Requirements
- V.90 requires a V.90 56K ITU standard capable service providerV.92 requires a V.92 56K ITU standard capable service providerV.92 Call Notification feature requires Call Waiting service from your local phone companyV.92 Call Identification feature requires Call Waiting/Caller ID services from your local phone companyRS-232 serial cable (not included)
Physical Characteristics
- Weight (Approximate)
- 2 lb
- Form Factor
- Desktop
- Height
- 4.9"
- Width
- 10.9"
- Depth
- 5.8"
Technical Information
- Fax Technology
- Group 3
- Modulation
- ITU-T V.34
